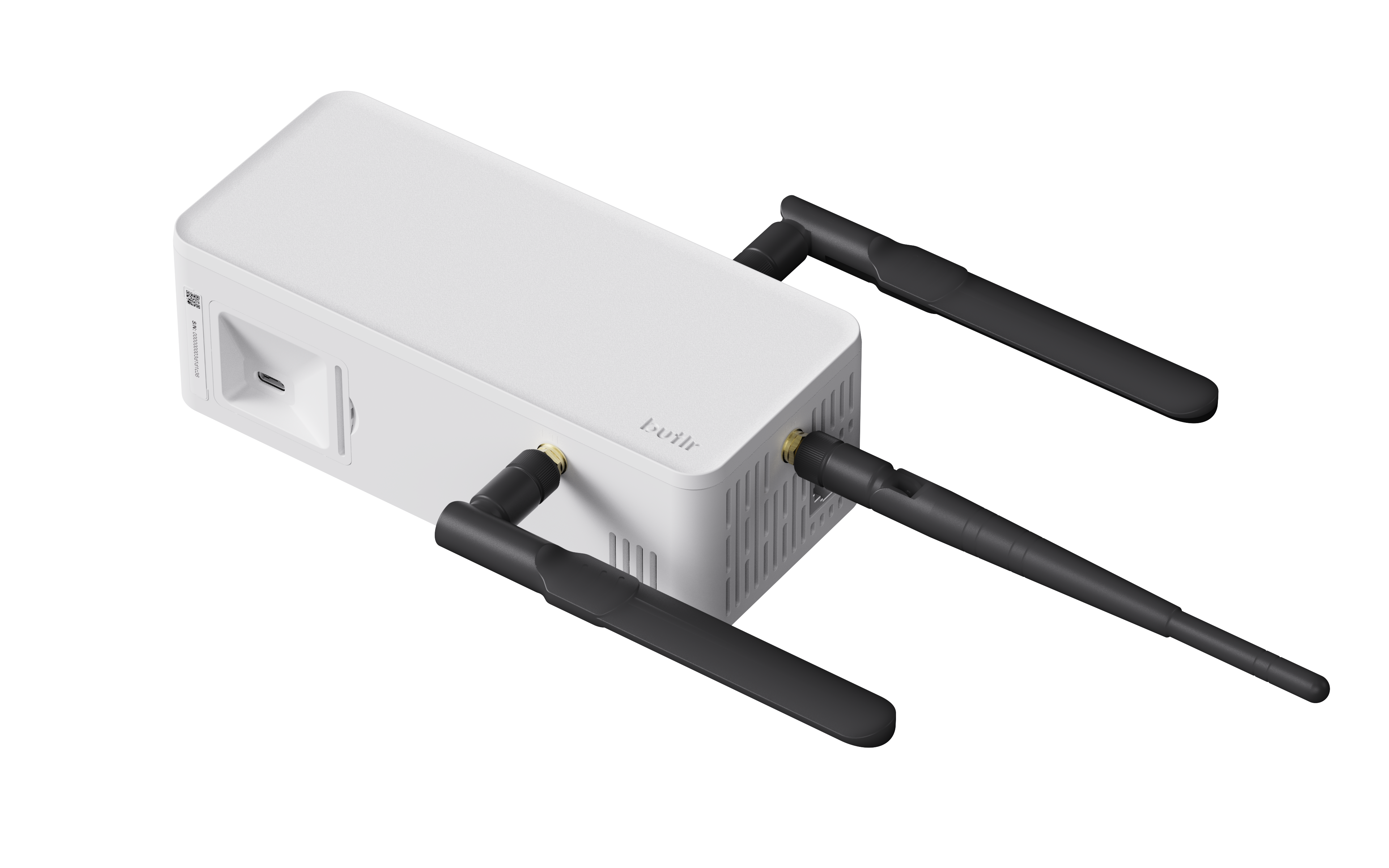

The Hive (Cellular) is Butlr’s gateway designed to provide robust, secure, and easy-to-deploy connectivity for Heatic sensors. This release introduces major improvements to network reliability, device capacity, and installation flexibility.
What's New
Reliable Cellular Connectivity
Built-in 4G LTE modem with broad band support ensures stable internet access across regions.
Single IoT SIM slot with certified SIM provider for optimal provisioning.
Works in environments without site Wi-Fi or Ethernet.
Expanded Mounting Options
Multiple mounting methods now supported:
Command Strips

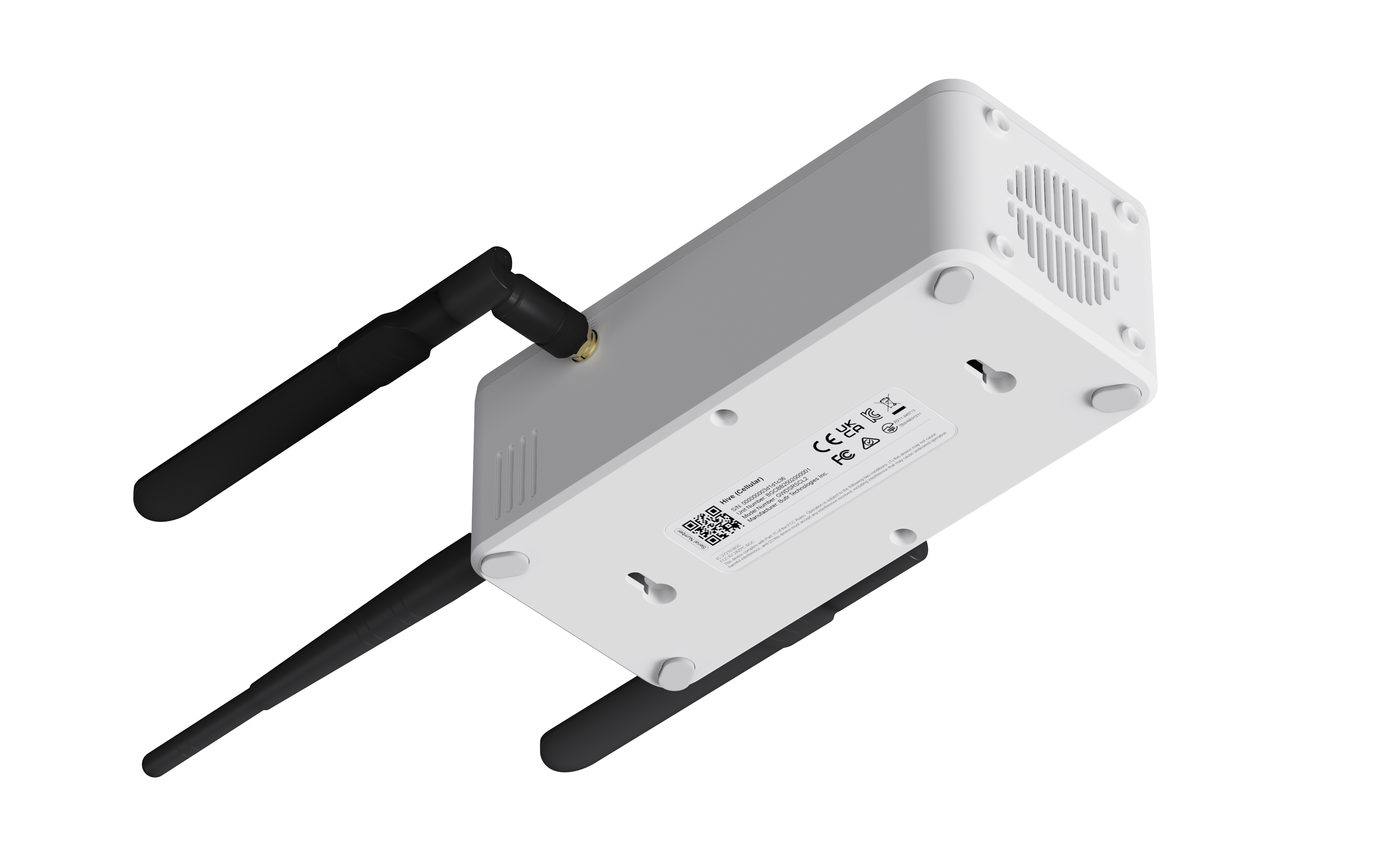

Screws (keyhole mount)
Magnetic mounts (for metal surfaces)
Designed for walls, ceilings, desks, and flexible locations.
Updated Configuration Tools
Configurable through the Butlr Web App.
Command Line Interface available for advanced installers.
No touchscreen—reducing points of failure.
Key Product Features
Secure by Design
Data encrypted in transit (TLS 1.2) and at rest (AES-256).
SAML authentication and SOC2 Type II compliance.
Annual internal & external security assessments.
Global Compliance
Certified across major regions including FCC, CE, RCM, MIC, UKCA, SRRC, CTA, and more.
Indoor-Optimized Hardware
Operating range: 0–104°F (0–40°C)
ABS enclosure, compact design, and multiple antenna configuration (LTE + gateway mesh).
Dimensions: 8.5 × 6.5 × 4 in, 490g.
OTA Firmware Updates
Hives automatically receive system updates and network configuration from the Butlr cloud.
Compatibility
Works with Heatic 1, Heatic 2, and Heatic 2+ sensors.
Performance Recommendations
Maintain < 30 ft (10 m) between Hive and sensors for best mesh performance.
Avoid connecting more than 10 sensors per Hive.
When deploying multiple Hives, space them a few meters apart to minimize radio interference.
Known Limitations
Proxy servers are not supported.
Indoor-only deployment.
Cellular performance may vary by carrier and building construction.
